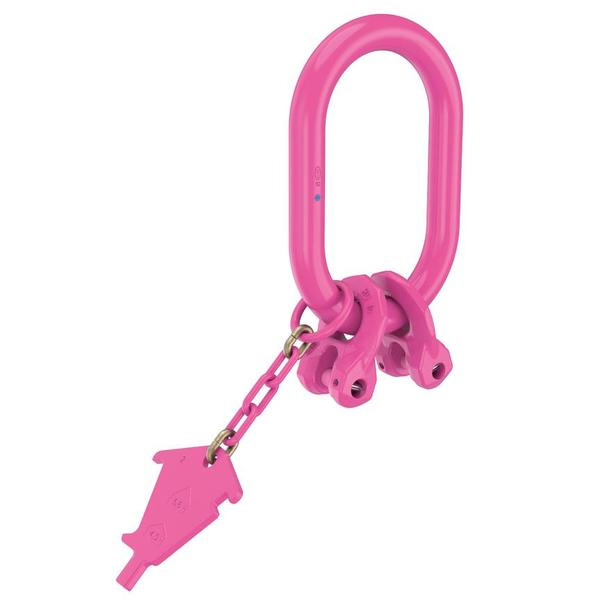

ห่วงเหล็กแม่-ลูก สองขารุ่น VIP, เกรด 100

ห่วงเหล็กแม่-ลูก สองขารุ่น VIP, เกรด 100
• ห่วงเหล็กแม่-ลูกสองขามาพร้อมตัวเชื่อม VRG ที่หมุนได้ทุกทิศทาง ซึ่งตัวเชื่อมนี้จะสามารถประกอบเข้ากับโซ่ที่มีขนาดพอดีกันเท่านั้น ทำให้ผู้ใช้งานมั่นใจได้ว่าใช้โซ่ขนาดถูกต้องและมีจำนวนขาตามที่ระบุในคู่มือ
• ห่วงเหล็กแม่-ลูกถูกทำเครื่องหมายโดย RUD-ID-TAG® (ชิป RFID) ด้วยหมายเลขเฉพาะตัวที่แตกต่างกัน
• ตัวแท็กมาพร้อมข้อมูลมาตรวัดการทดสอบโซ่
• มีสลักเกลียวเชื่อมต่อและปลอกปรับความตึงที่ประกอบไว้ล่วงหน้า
• ผลิตขึ้นตามมาตรฐาน DIN EN 1677-4 และขนาดสอดคล้องกับลิงค์ประเภท A ตามมาตรฐาน DIN 5688

VIP-Master link for 2 strands VAK 1/2-4 (7984445)

Article number: 7984445

Attribute	Value	Value
Attributeweight	Value0.12 kg	Value0.22 lbs
AttributeNominal WLL	Value880 kg	Value1930 lbs
AttributeT	Value55 mm	Value2-5/32"
AttributeA	Value9 mm	Value11/32"
AttributeB	Value30 mm	Value1-3/16"
AttributeC	Value28 mm	Value1-1/8"
AttributeD	Value20 mm	Value3/4"
AttributeE	Value6 mm	Value15/64"

VIP Master link for 2 strands VAK 2-6 (7100706)

Article number: 7100706

Attribute	Value	Value
Attributeweight	Value0.65 kg	Value1.43 lbs
AttributeNominal WLL	Value2100 kg	Value4600 lbs
AttributeT	Value138 mm	Value5-7/16"
AttributeA	Value13 mm	Value1/2"
AttributeB	Value60 mm	Value2-3/8"
AttributeC	Value110 mm	Value4-11/32"

VIP Master link for 2 strands VAK 2-8 (7100707)

Article number: 7100707

Attribute	Value	Value
Attributeweight	Value1.40 kg	Value3.09 lbs
AttributeNominal WLL	Value3500 kg	Value7700 lbs
AttributeT	Value172 mm	Value6-25/32"
AttributeA	Value18 mm	Value11/16"
AttributeB	Value75 mm	Value2-15/16"
AttributeC	Value135 mm	Value5-5/16"

VIP Master link for 2 strands VAK 2-10 (7100708)

Article number: 7100708

Attribute	Value	Value
Attributeweight	Value2.47 kg	Value5.45 lbs
AttributeNominal WLL	Value5600 kg	Value12300 lbs
AttributeT	Value206 mm	Value8-1/8"
AttributeA	Value22 mm	Value7/8"
AttributeB	Value90 mm	Value3-17/32"
AttributeC	Value160 mm	Value6-13/32"

VIP Master link for 2 strands VAK 2-13 (7100709)

Article number: 7100709

Attribute	Value	Value
Attributeweight	Value4.30 kg	Value9.46 lbs
AttributeNominal WLL	Value9500 kg	Value21000 lbs
AttributeT	Value238 mm	Value9-3/8"
AttributeA	Value26 mm	Value1"
AttributeB	Value100 mm	Value3-15/16"
AttributeC	Value180 mm	Value7-1/16"

VIP Master link for 2 strands VAK 2-16 (7100710)

Article number: 7100710

Attribute	Value	Value
Attributeweight	Value7.59 kg	Value16.7 lbs
AttributeNominal WLL	Value14000 kg	Value31600 lbs
AttributeT	Value270 mm	Value10-5/8"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value110 mm	Value4-5/16"
AttributeC	Value200 mm	Value7-7/8"

VIP Master link for 2 strands VAK 2-20 (7104095)

Article number: 7104095

Attribute	Value	Value
Attributeweight	Value18.19 kg	Value40.0 lbs
AttributeNominal WLL	Value22400 kg	Value49400 lbs
AttributeT	Value434 mm	Value17-1/16"
AttributeA	Value40 mm	Value1-5/8"
AttributeB	Value180 mm	Value7-1/16"
AttributeC	Value340 mm	Value13-3/8"

VIP Master link for 2 strands VAK 2-22 (7100711)

Article number: 7100711

Attribute	Value	Value
Attributeweight	Value21.79 kg	Value48.0 lbs
AttributeNominal WLL	Value28000 kg	Value61600 lbs
AttributeT	Value434 mm	Value17-1/16"
AttributeA	Value45 mm	Value1-3/4"
AttributeB	Value180 mm	Value7-1/16"
AttributeC	Value340 mm	Value13-3/8"

MAXI-Master link for 2 strands VAK 1/2-28 (7900642)

Article number: 7900642

Attribute	Value	Value
Attributeweight	Value64.30 kg	Value141.76 lbs
AttributeNominal WLL	Value31500 kg	Value69300 lbs
AttributeT	Value360 mm	Value14-5/32"
AttributeA	Value100 mm	Value3-15/16"
AttributeB	Value250 mm	Value9-13/16"
AttributeC	Value280 mm	Value11"
AttributeD	Value208 mm	Value8-3/16"
AttributeE	Value120 mm	Value4-3/4"
AttributeF	Value76 mm	Value3"

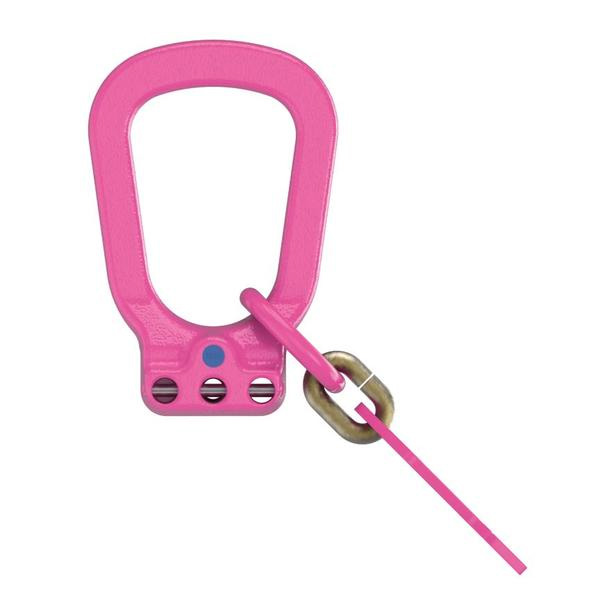

VIP-Master link for 2 strands VBK 2-6 (7100700)

Article number: 7100700

Attribute	Value	Value
Attributeweight	Value0.49 kg	Value1.08 lbs
AttributeNominal WLL	Value2100 kg	Value4600 lbs
AttributeT	Value82 mm	Value3-1/4"
AttributeA	Value13 mm	Value1/2"
AttributeB	Value25 mm	Value1"
AttributeC	Value54 mm	Value2-1/8"

VIP-Master link for 2 strands VBK 2-8 (7100701)

Article number: 7100701

Attribute	Value	Value
Attributeweight	Value0.93 kg	Value2.05 lbs
AttributeNominal WLL	Value3500 kg	Value7700 lbs
AttributeT	Value107 mm	Value4-3/16"
AttributeA	Value16 mm	Value5/8"
AttributeB	Value34 mm	Value1-5/16"
AttributeC	Value70 mm	Value3-3/4"

VIP-Master link for 2 strands VBK 2-10 (7100702)

Article number: 7100702

Attribute	Value	Value
Attributeweight	Value1.54 kg	Value3.40 lbs
AttributeNominal WLL	Value5600 kg	Value12300 lbs
AttributeT	Value131 mm	Value5-3/16"
AttributeA	Value18 mm	Value11/16"
AttributeB	Value40 mm	Value1-9/16"
AttributeC	Value85 mm	Value3-11/32"

VIP-Master link for 2 strands VBK 2-13 (7100703)

Article number: 7100703

Attribute	Value	Value
Attributeweight	Value3.02 kg	Value6.61 lbs
AttributeNominal WLL	Value9500 kg	Value21000 lbs
AttributeT	Value174 mm	Value6-7/8"
AttributeA	Value22 mm	Value7/8"
AttributeB	Value50 mm	Value1-31/32"
AttributeC	Value115 mm	Value4-1/2"

VIP-Master link for 2 strands VBK 2-16 (7100704)

Article number: 7100704

Attribute	Value	Value
Attributeweight	Value5.41 kg	Value11.88 lbs
AttributeNominal WLL	Value14000 kg	Value31600 lbs
AttributeT	Value211 mm	Value8-5/16"
AttributeA	Value26 mm	Value1"
AttributeB	Value65 mm	Value2-9/16"
AttributeC	Value140 mm	Value5-1/2"

VIP-Master link for 2 strands VBK 2-20 (7104097)

Article number: 7104097

Attribute	Value	Value
Attributeweight	Value11.11 kg	Value24.4 lbs
AttributeNominal WLL	Value22400 kg	Value49400 lbs
AttributeT	Value264 mm	Value10-3/8"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value75 mm	Value2-15/16"
AttributeC	Value170 mm	Value6-3/4"

VIP-Master link for 2 strands VBK 2-22 (7100705)

Article number: 7100705

Attribute	Value	Value
Attributeweight	Value12.82 kg	Value28.2 lbs
AttributeNominal WLL	Value28000 kg	Value61600 lbs
AttributeT	Value294 mm	Value11-9/16"
AttributeA	Value36 mm	Value1-13/32"
AttributeB	Value110 mm	Value4-11/32"
AttributeC	Value200 mm	Value7-7/8"

VIP-MAXI-Master link for 2 strands VBK 1/2-28 (8504022)

Article number: 8504022

Attribute	Value	Value
Attributeweight	Value35.33 kg	Value77.89 lbs
AttributeNominal WLL	Value31500 kg	Value69300 lbs
AttributeT	Value322 mm	Value12-21/32"
AttributeA	Value60 mm	Value2-3/8"
AttributeB	Value190 mm	Value7-1/2"
AttributeC	Value265 mm	Value10-7/16"
AttributeD	Value240 mm	Value9-1/2"
AttributeE	Value120 mm	Value4-3/4"
AttributeF	Value55 mm	Value2-5/32"

VIP-Special master link VSAK 2-6/140 (7994070)

Article number: 7994070

Attribute	Value	Value
Attributeweight	Value2.26 kg	Value4.97 lbs
AttributeNominal WLL	Value2100 kg	Value4600 lbs
AttributeT	Value342 mm	Value13-7/16"
AttributeA	Value18 mm	Value11/16"
AttributeB	Value140 mm	Value5-1/2"
AttributeC	Value260 mm	Value10-1/4"

VIP-Special master link VSAK 2-8/140 (7994071)

Article number: 7994071

Attribute	Value	Value
Attributeweight	Value3.56 kg	Value7.81 lbs
AttributeNominal WLL	Value3500 kg	Value7700 lbs
AttributeT	Value367 mm	Value14-7/16"
AttributeA	Value22 mm	Value7/8"
AttributeB	Value140 mm	Value5-1/2"
AttributeC	Value260 mm	Value10-1/4"

VIP-Special master link VSAK 2-8/190 (7994075)

Article number: 7994075

Attribute	Value	Value
Attributeweight	Value4.25 kg	Value9.35 lbs
AttributeNominal WLL	Value3500 kg	Value7700 lbs
AttributeT	Value457 mm	Value18"
AttributeA	Value22 mm	Value7/8"
AttributeB	Value190 mm	Value7-1/2"
AttributeC	Value350 mm	Value13-3/4"

VIP-Special master link VSAK 2-10/140 (7994072)

Article number: 7994072

Attribute	Value	Value
Attributeweight	Value5.23 kg	Value11.5 lbs
AttributeNominal WLL	Value5600 kg	Value12300 lbs
AttributeT	Value391 mm	Value15-3/8"
AttributeA	Value26 mm	Value1"
AttributeB	Value140 mm	Value5-1/2"
AttributeC	Value260 mm	Value10-1/4"

VIP-Special master link VSAK 2-10/190 (7994076)

Article number: 7994076

Attribute	Value	Value
Attributeweight	Value6.53 kg	Value14.36 lbs
AttributeNominal WLL	Value5600 kg	Value12300 lbs
AttributeT	Value481 mm	Value18-7/8"
AttributeA	Value26 mm	Value1"
AttributeB	Value190 mm	Value7-1/2"
AttributeC	Value350 mm	Value13-3/4"

VIP-Special master link VSAK 2-10/250 (7994079)

Article number: 7994079

Attribute	Value	Value
Attributeweight	Value12.70 kg	Value27.95 lbs
AttributeNominal WLL	Value5600 kg	Value12300 lbs
AttributeT	Value591 mm	Value23-1/4"
AttributeA	Value36 mm	Value1-7/16"
AttributeB	Value250 mm	Value9-13/16"
AttributeC	Value460 mm	Value18-1/8"

VIP-Special master link VSAK 2-13/140 (7994073)

Article number: 7994073

Attribute	Value	Value
Attributeweight	Value9.25 kg	Value20.35 lbs
AttributeNominal WLL	Value9500 kg	Value21000 lbs
AttributeT	Value433 mm	Value17-1/16"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value140 mm	Value5-1/2"
AttributeC	Value260 mm	Value10-1/4"

VIP-Special master link VSAK 2-13/190 (7994077)

Article number: 7994077

Attribute	Value	Value
Attributeweight	Value10.60 kg	Value23.32 lbs
AttributeNominal WLL	Value9500 kg	Value21000 lbs
AttributeT	Value523 mm	Value20-9/16"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value190 mm	Value7-1/2"
AttributeC	Value350 mm	Value13-3/4"

VIP-Special master link VSAK 2-13/250 (7994080)

Article number: 7994080

Attribute	Value	Value
Attributeweight	Value14.73 kg	Value32.35 lbs
AttributeNominal WLL	Value9500 kg	Value21000 lbs
AttributeT	Value634 mm	Value24-15/16"
AttributeA	Value36 mm	Value1-7/16"
AttributeB	Value250 mm	Value9-13/16"
AttributeC	Value460 mm	Value18-1/8"

VIP-Special master link VSAK 2-16/140 (7994074)

Article number: 7994074

Attribute	Value	Value
Attributeweight	Value12.46 kg	Value27.4 lbs
AttributeNominal WLL	Value14000 kg	Value31600 lbs
AttributeT	Value471 mm	Value18-9/16"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value140 mm	Value5-1/2"
AttributeC	Value260 mm	Value10-1/4"
