Since we invented the automatic hook in 2006, our customers have identified the need for smaller, lighter and more compact crane hooks.

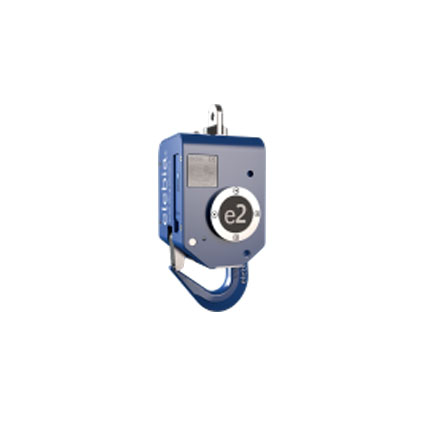

Having listened, we are proud to present the evo2 automatic hook. Weighing only 7 kgs./15.43 lbs. and with a working load limit of 2,500 kgs./5,511 lbs., the evo2 remote release hook has additional features than its bigger counterparts. Smaller, more compact, lighter, more efficient, more versatile… Smarter!
The evo2 is an automatic crane hook which, like the rest of the range of our lifting hooks for cranes, hooks on and releases the load remotely, increasing safety, productivity and comfort of all cargo lifting operations.
Our smallest automatic crane hook lifts and releases the load remotely. The remote controlled crane hook generates a magnetic field that attracts and orients the sling, masterlink or rigging gear. The operator then presses the “close” button on the remote control to automatically close the crane hook, without any manual intervention, operating remotely from a safe distance.

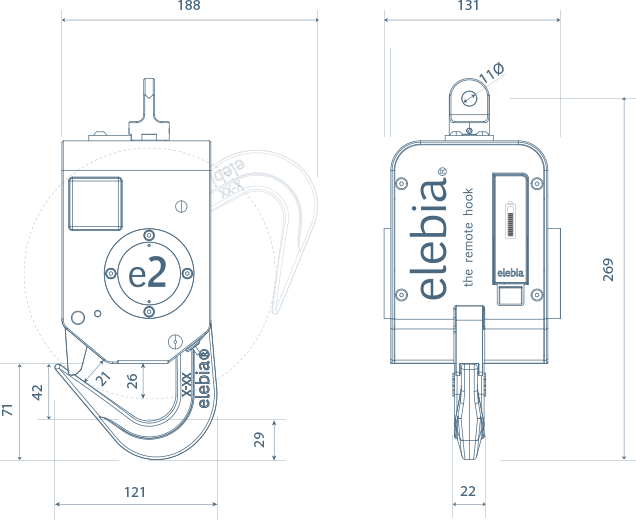

Small, Compact, Light & Tough
We have created an automatic hook that is lighter, smaller and more compact but equally as strong.

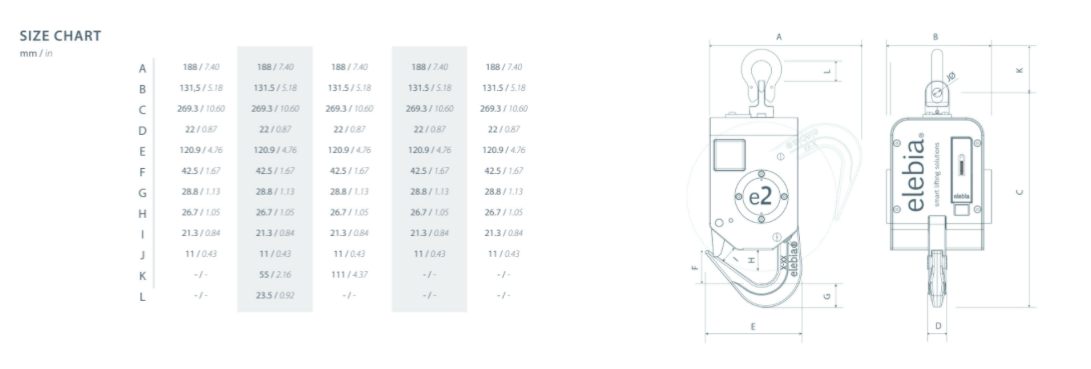

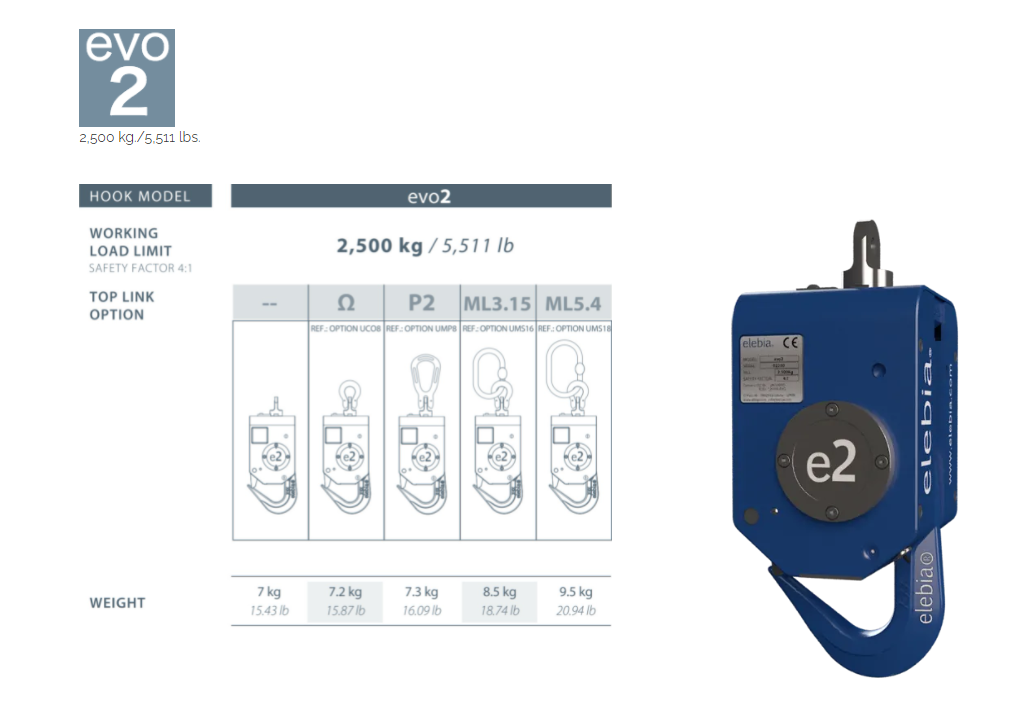

Specs
For more information on the rest of the evo automatic hook range

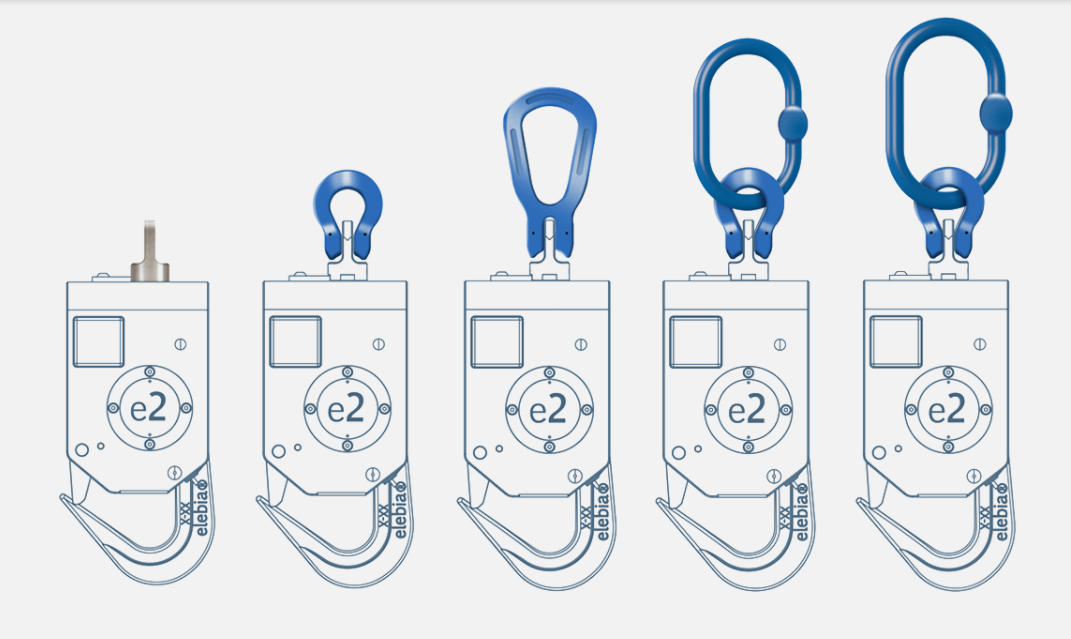

Top Link
The system that links the automatic hook with the crane can be customized in order to adapt itself to any kind of situation.

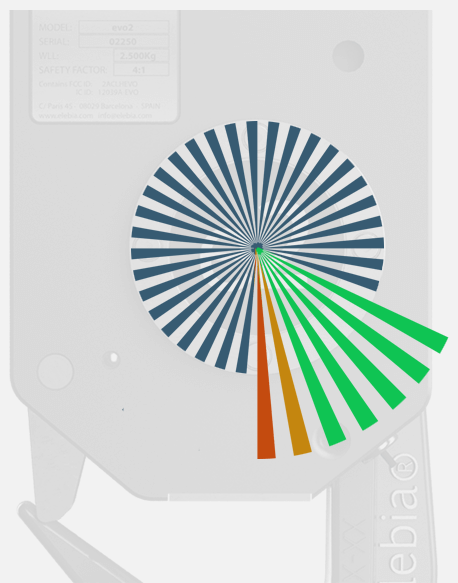

Encoder
The evo2 automatic hook incorporates an innovative position encoder.
This allows the user to know the exact position of the crane hook, allowing better control.
This results in longer motor life and safer operations. The sensor is contactless: no wearings and zero maintenance.

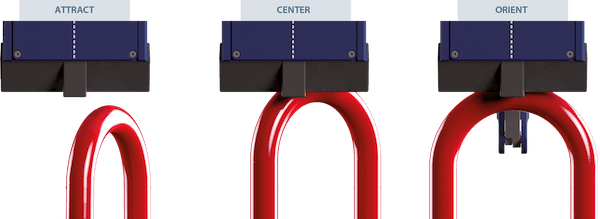

Magnetic System
The elebia crane hooks come with a unique magnetic system, formed by 32 neodymium permanent magnets. These magnets are placed in a precise configuration that generate an oriented magnetic field with 3 functions: attract, center and orient the masterlink. This basic component, which is present in all our remote hooks, is what allows the remote engage of loads. Some other options are available to be configured:
Weighing Scale
The complete range of automatic crane hooks can be upgraded with a load cell to weigh the load that is being lifted. This cargo cell is precise, reliable, compact and fully integrated into the safety hook, representing no increase in weight or dimensions of the unit. The load cell is recommended for preventing overloads and for load control. Load cells can also be retrofitted into older models of our hooks. The load cell in combination with the eMAX remote control transforms all of our crane hooks into a precise weighing scale with advanced features.

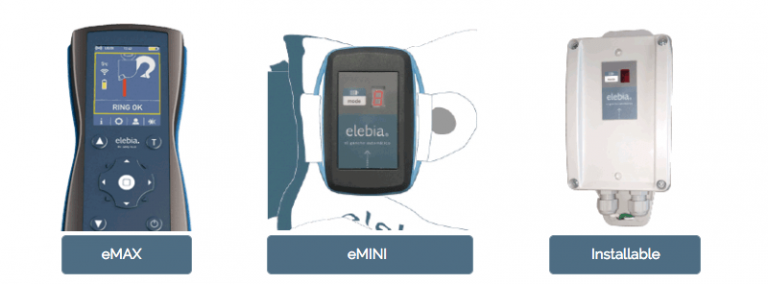

Remote Controlled
Open and close the safety hook or receive real-time information of weight,
battery level, and other values of the lifting operation.

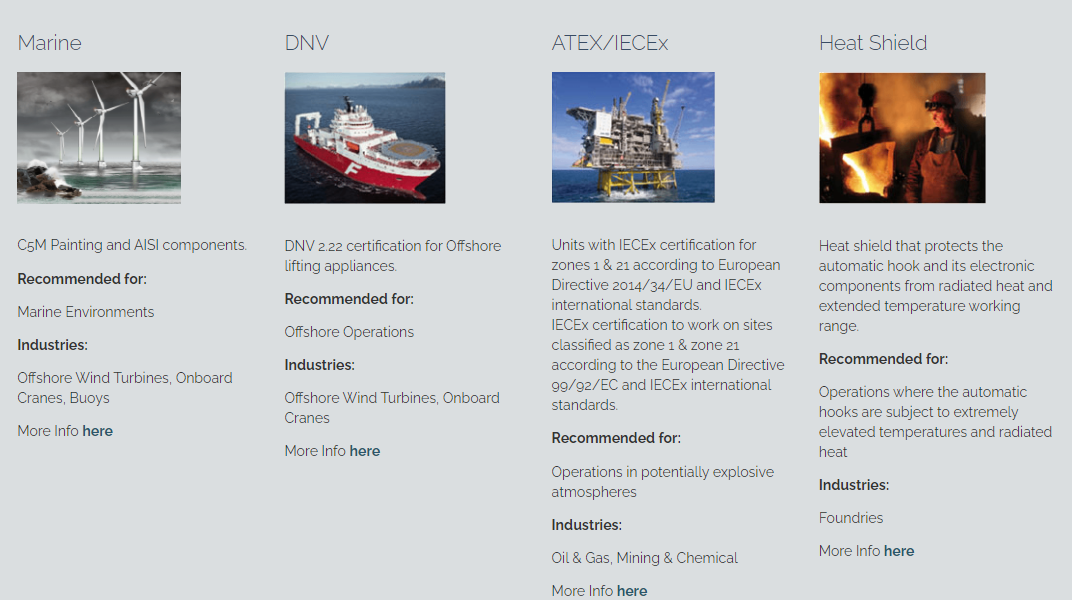

Special Environments
The standard automatic crane hooks units are rugged, designed and built to work in almost every industry. For special environments, you have the following options:
