ตะขอยกอัตโนมัติ
Lifting Hooks for Cranes

With the evo range of lifting hooks for cranes, elebia, the market leader in automatic lifting solutions will boost the safety and productivity of your cranes. The patented evo automatic hooks range from the 2.5 tons capacity of the evo2 crane hook to 25 tons capacity and allow you to hook on and release any load remotely.

The patented range of safety hooks are equipped with a magnet in its lower section. When the magnet is close to the load, it attracts and correctly positions the sling. The operator pushes the control button, the hook closes, catches the ring and lifts the load without any additional handling.

The automatic crane hooks work with cable slings, chains slings, master links, textile slings and even big bags. And with the unique elebia automatic hook, you will be able to pick up and release loads remotely, avoiding any handling and moving, minimising risks, enhancing safety and increasing productivity.

evo25

Smart

Smart Lifting Hook for Cranes - The Automatic Hook of the Future

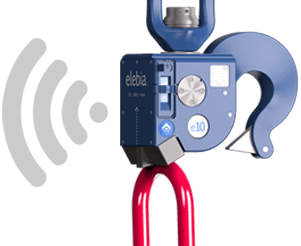

A sensor in the magnet indicates when the ring is in position. All this information is recorded in the eMAX remote control that acts as a hub gathering all the information and recording all the activity of the hook.

Efficient

Efficient-Lifting-Hook-for-Cranes width=

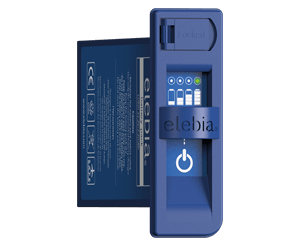

We’ve redesigned the high-capacity battery to improve efficiency and minimise energy consumption of the hook. The battery is fully charged in 3 hours, and allows up to 5,000 cycles or 250 hours in standby mode.



Powerful

Powerful-Lifting-Hook-for-Cranes

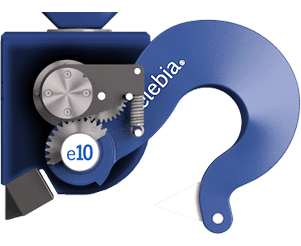

The new gearmotor allows you to release up to 20kgs. (40.09 lbs.) There will be no more problems with heavy rigging and with the precise electronic torque control, you can adjust the release limit. It is also clutch protected from overloads.

Tough

Tough-Lifting-Hook-for-Cranes

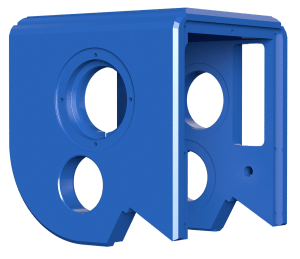

Designed to work in the toughest conditions (steelworks, ports, low temperatures) and built with the best materials. WELDOX body of high strength steel, forged hook type T or V.

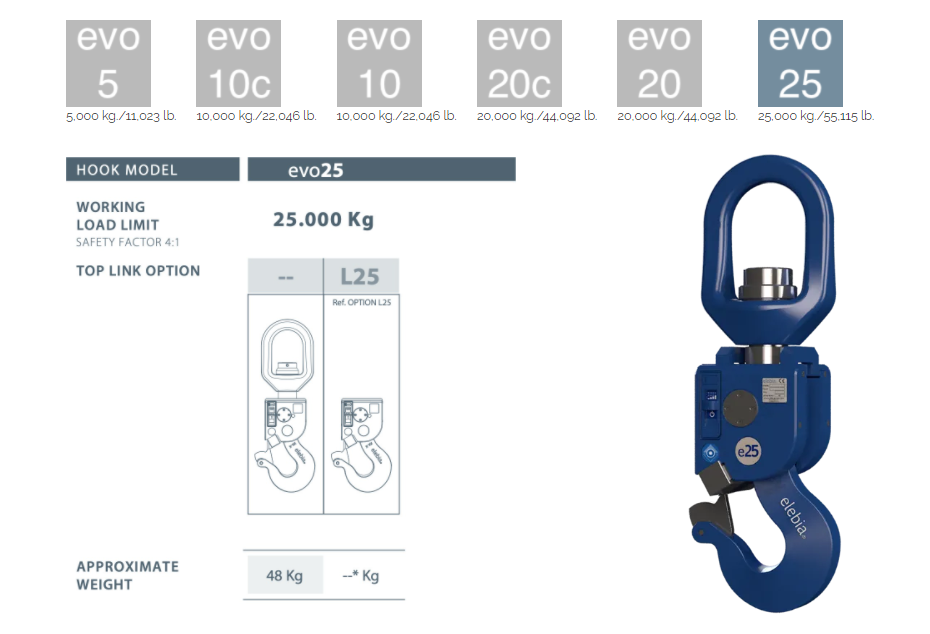

Range

For information regarding the evo2 crane hook,

Elebia’s Customers
Elebia’s Customers

Position Encoder

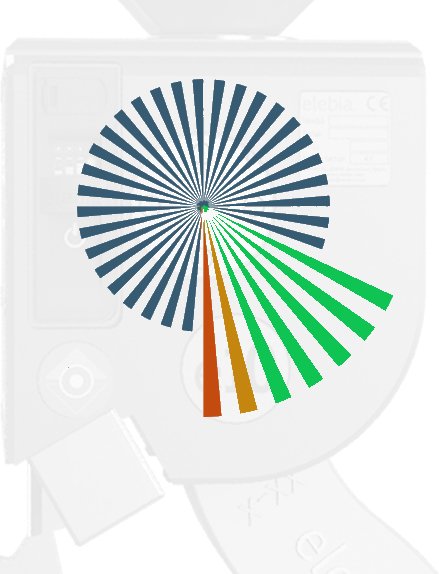

The innovative position encoder has been integrated into the complete range of evo lifting hooks for cranes. As a result, this represents an added safety element in all lifting operations. The encoder highlights a technical upgrade of our remote hooks, as it allows to know the exact angular position of the hook at any given moment thanks the information relayed to the eMAX remote control.

This important feature comes in very handy in operations where the operator can not see the hook’s position. The automatic hook’s status is displayed on the eMAX remote control, transmitting real time information to the operator.

With the position encoder and the eMAX remote control, the user is always aware of the hook’s status (open/closed) and is informed with the buzzer/vibrator and display features of the eMAX if the load is not placed correctly on the safety hook. (e.g. tip of the hook)

With the specifications of this advanced feature, the chances of impacts are reduced, the life-span of the motor and clutch increase and most importantly, safety is enhanced in all lifting operations.

The position encoder can be retrofitted into older units of the complete range of evo lifting hooks for cranes (except for versions with a spring loaded latch)

The Automatic Hook of the Future

Magnetic System

Our automatic hooks come with a unique magnetic system, formed by 32 neodymium permanent magnets. These magnets are placed in a precise configuration that generate an oriented magnetic field with 3 functions: attract, center and orient the masterlink. The complete range of our automatic hooks carry this basic component, which allows the remote engage of loads.

Other options can also be configured with the crane hooks:

The evo2 Automatic Crane Hooks

Weighing Scale

The complete range of quick release hooks for cranes can be upgraded with a load cell to weigh the load that is being lifted. This cargo cell is accurate, powerful and fully integrated into the hook, representing no increase in weight or dimensions of the unit. The load cell is highly recommended for preventing overloads and as an additional safety hooks lifting measure. Load cells can also be retrofitted into older models of our crane lifting hooks.

The load cell in combination with the eMAX remote control transforms all of our load hooks into a precise weighing scale with advanced features.

The evo2 Automatic Crane Hooks

Remote Controlled

Simply open and close the automatic crane hooks or receive real-time information of weight, battery level, and other values of the lifting and manoeuvring operation.

As with the rest of our lifting products, the automatic crane hook can be paired to the eMAX, eMINI and/or eINST installable remote controls. All of them allow a simple, flexible, precise and reliable control in a fail-safe way.

img evo2 encoder - The evo2 Automatic Crane Hookss

Special Environments

The standard automatic crane hooks units are rugged, designed and built to work in almost every industry. For special environments, you have the following options:

The evo2 Automatic Crane Hooks
evo10 lifting hook for cranes  - The Automatic Hook of the Future
