RUD sling and lashing systems

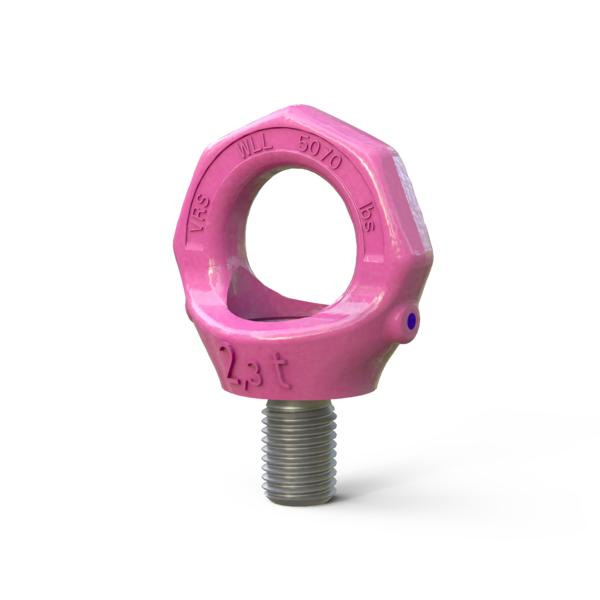

VRS STARPOINT, UNF thread
- Not exchangeable RUD-Bolt (this reduces the usage of improper standard bolts).
- The WLL information corresponds with the min. WLL (worst case scenario) in all loading directions. Higher WLL by optimised attachment or application.
- Comprehensive range of threads.
Article number: 7997676
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.50 kg | Value1.10 lbs |
| AttributeNominal WLL | Value1500 kg | Value3300 lbs |
| AttributeT | Value49 mm | Value1-15/16" |
| AttributeB | Value15 mm | Value19/32" |
| AttributeC | Value14 mm | Value9/16" |
| AttributeD | Value35 mm | Value1-3/8" |
| AttributeE | Value35 mm | Value1-3/8" |
| AttributeG | Value41 mm | Value1-5/8" |
| AttributeI | Value23,5 mm | Value59/64" |
| AttributeK | Value65 mm | Value2-9/16" |
| AttributeL | Value30 mm | Value1-3/16" |
| AttributeM | Value3/4"-16UNF mm | Value3/4"-16UNF |
| AttributeN | Value3/8" mm | Value3/8" |
