RUD sling and lashing systems

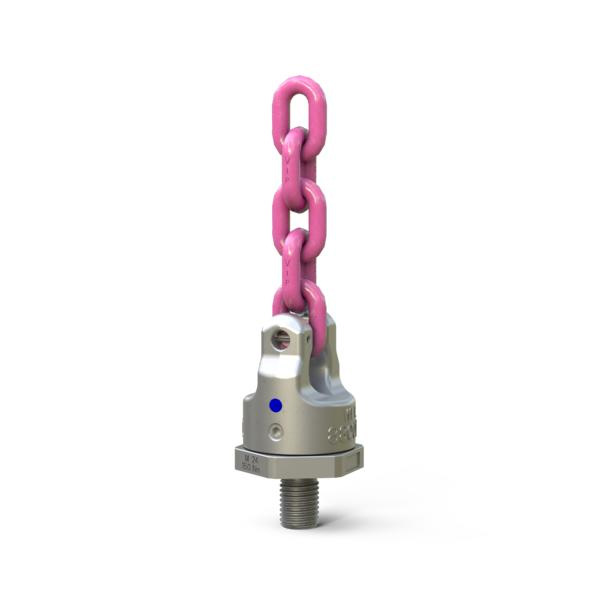

PP-VIP PowerPoint® Direct VIP chain connection, UNC thread
UNC inch thread.- Large WLL range 0.63 t – 8 t.
- PP-VIP: direct chain connection.
- So-PP-S, So-PP-B, So-PP-VIP: variable thread lengths.
- Rotatable 90° to the bolt-on direction under WLL.
- Lowest kinking possibility due to cardan joint.
- PP-VIP, So-PP-VIP: universal and non-mix-up clevis connection for easy construction with chains, hooks and eye.
Article number: 8600571

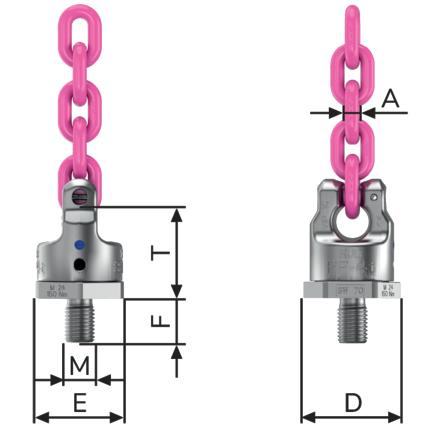

| Attribute | Value |
|---|---|
| AttributeWLL | Value630 kg |
| AttributeWeight | Value0,24 kg |
| Attributesize A | Value4 mm |
| Attributesize B | Value |
| Attributesize C | Value |
| Attributesize D | Value40 mm |
| Attributesize E | Value36 mm |
| Attributesize F | Value18 mm |
| Attributesize M | Value1/2"-13UNC |
| Attributepitch T | Value41 mm |
Article number: 8600572
| Attribute | Value |
|---|---|
| AttributeWLL | Value1.500 kg |
| AttributeWeight | Value0,42 kg |
| Attributesize A | Value6 mm |
| Attributesize B | Value |
| Attributesize C | Value |
| Attributesize D | Value46 mm |
| Attributesize E | Value41 mm |
| Attributesize F | Value24 mm |
| Attributesize M | Value5/8"-11UNC |
| Attributepitch T | Value49 mm |
Article number: 8600573
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.93 kg | Value2.09 lbs |
| AttributeNominal WLL | Value2500 kg | Value5500 lbs |
| AttributeT | Value61 mm | Value2-13/32" |
| AttributeA | Value8 mm | Value5/16" |
| AttributeD | Value61 mm | Value2-13/32" |
| AttributeE | Value55 mm | Value2-5/32" |
| AttributeF | Value30 mm | Value1-3/16" |
| AttributeM | Value3/4"-10UNC mm | Value3/4"-10UNC |
Article number: 8600573
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.95 kg | Value2.20 lbs |
| AttributeNominal WLL | Value2500 kg | Value5500 lbs |
| AttributeT | Value61 mm | Value2-13/32" |
| AttributeA | Value8 mm | Value5/16" |
| AttributeD | Value61 mm | Value2-13/32" |
| AttributeE | Value55 mm | Value2-5/32" |
| AttributeF | Value30 mm | Value1-3/16" |
| AttributeM | Value7/8"-9UNC mm | Value7/8"-9UNC |
Article number: 8600574
| Attribute | Value |
|---|---|
| AttributeWLL | Value4.000 kg |
| AttributeWeight | Value1,83 kg |
| Attributesize A | Value10 mm |
| Attributesize B | Value |
| Attributesize C | Value |
| Attributesize D | Value78 mm |
| Attributesize E | Value70 mm |
| Attributesize F | Value36 mm |
| Attributesize M | Value1"-8UNC |
| Attributepitch T | Value77 mm |
Article number: 8600575
| Attribute | Value |
|---|---|
| AttributeWLL | Value5.000 kg |
| AttributeWeight | Value3,5 kg |
| Attributesize A | Value13 mm |
| Attributesize B | Value |
| Attributesize C | Value |
| Attributesize D | Value95 mm |
| Attributesize E | Value85 mm |
| Attributesize F | Value45 mm |
| Attributesize M | Value1 1/4"-7UNC |
| Attributepitch T | Value93 mm |
Article number: 8600305
| Attribute | Value |
|---|---|
| AttributeWLL | Value8.000 kg |
| AttributeWeight | Value6,9 kg |
| Attributesize A | Value16 mm |
| Attributesize D | Value100 mm |
| Attributesize E | Value90 mm |
| Attributesize F max | Value300 mm |
| Attributesize M | Value1 1/2"-6UNC |
| Attributepitch T | Value100 mm |
Article number: 8600320
| Attribute | Value | Value |
|---|---|---|
| AttributeNominal WLL | Value600 kg | Value1320 lbs |
| AttributeT | Value47 mm | Value1-7/8" |
| AttributeA | Value4 mm | Value5/32" |
| AttributeD | Value42 mm | Value1-21/32" |
| AttributeE | Value36 mm | Value1-27/64" |
| AttributeF | Value40-149 mm | Value1-9/16" up to 5-7/8" |
| AttributeM | Value1/2"-13UNC mm | Value1/2"-13UNC |
Article number: 8600321
| Attribute | Value | Value |
|---|---|---|
| AttributeNominal WLL | Value1300 kg | Value2860 lbs |
| AttributeT | Value58 mm | Value2-9/32" |
| AttributeA | Value6 mm | Value15/64" |
| AttributeD | Value48 mm | Value1-7/8" |
| AttributeE | Value41 mm | Value1-5/8" |
| AttributeF | Value50-180 mm | Value1-31/32" up to 7-3/32" |
| AttributeM | Value5/8"-11UNC mm | Value5/8"-11UNC |
Article number: 8600322
| Attribute | Value | Value |
|---|---|---|
| AttributeNominal WLL | Value2000 kg | Value4400 lbs |
| AttributeT | Value73 mm | Value2-7/8" |
| AttributeA | Value8 mm | Value5/16" |
| AttributeD | Value61 mm | Value2-13/32" |
| AttributeE | Value55 mm | Value2-5/32" |
| AttributeF | Value56-222 mm | Value2-3/16"" up to 8-3/4" |
| AttributeM | Value3/4"-10UNC mm | Value3/4"-10UNC |
Article number: 8600323
| Attribute | Value | Value |
|---|---|---|
| AttributeNominal WLL | Value3500 kg | Value7700 lbs |
| AttributeT | Value94 mm | Value3-11/16" |
| AttributeA | Value10 mm | Value13/32" |
| AttributeD | Value81 mm | Value3-3/16" |
| AttributeE | Value70 mm | Value2-3/4" |
| AttributeF | Value25-74 mm | Value1" to 2-15/16" |
| AttributeM | Value1"-8UNC mm | Value1"-8UNC |
Article number: 8600324
| Attribute | Value | Value |
|---|---|---|
| AttributeNominal WLL | Value5000 kg | Value11000 lbs |
| AttributeT | Value108 mm | Value4-1/4" |
| AttributeA | Value13 mm | Value1/2" |
| AttributeD | Value99 mm | Value3-7/8" |
| AttributeE | Value85 mm | Value3-11/32" |
| AttributeF | Value31-91 mm | Value1-3/16" to 3-9/16" |
| AttributeM | Value1 1/4"-7UNC mm | Value1 1/4"-7UNC |
Article number: 8600305
| Attribute | Value | Value |
|---|---|---|
| AttributeNominal WLL | Value8000 kg | Value17600 lbs |
| AttributeT | Value100 mm | Value3-15/16" |
| AttributeA | Value16 mm | Value5/8" |
| AttributeD | Value100 mm | Value3-15/16" |
| AttributeE | Value90 mm | Value3-17/32" |
| AttributeF | Value39-300 mm | Value39-300 |
| AttributeM | Value1 1/2"-6UNC mm | Value1 1/2"-6UNC |
Article number: 8600305
| Attribute | Value | Value |
|---|---|---|
| AttributeNominal WLL | Value8000 kg | Value17600 lbs |
| AttributeT | Value100 mm | Value3-15/16" |
| AttributeA | Value16 mm | Value5/8" |
| AttributeD | Value100 mm | Value3-15/16" |
| AttributeE | Value90 mm | Value3-17/32" |
| AttributeF | Value39-300 mm | Value39-300 |
| AttributeM | Value1 1/2"-8UN mm | Value1 1/2"-8UN |
