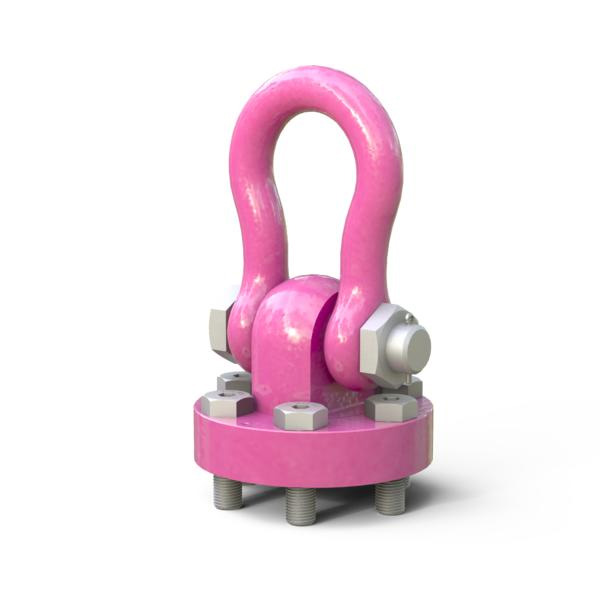

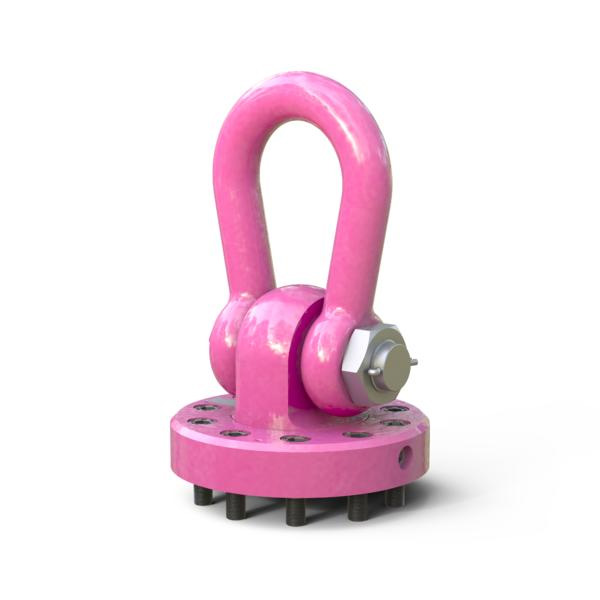

WBPG Hoist ring on plate for bolting
- Large WLL range 85 t – 250 t.
- Suspension ring, resp. shackle pivots 180°.
- Lifting point swivels 360°.
- Removable suspension ring in shape of a shackle for attaching in conventional lifting means.
- Original RUD bolt with special corrosion protection Corrud-DT for 85 t – 250 t.
- Installation possible with clevis, ring and allen key.

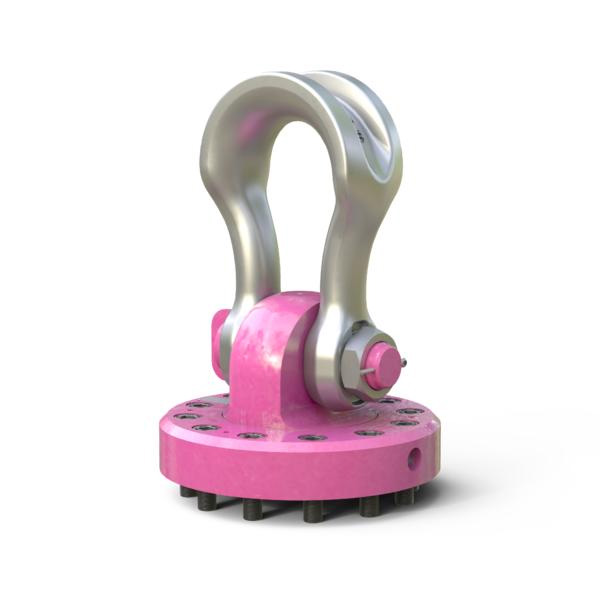

- Also available with sling shackle as suspension ring (WBPG-SL).
Article number: 7993712
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value170.00 kg | Value374.79 lbs |
| AttributeNominal WLL | Value85000 kg | Value187000 lbs |
| AttributeT | Value577 mm | Value22-23/32" |
| AttributeA | Value400 mm | Value15-3/4" |
| AttributeB | Value75 mm | Value2-15/16" |
| AttributeC | Value577 mm | Value22-23/32" |
| AttributeD | Value190 mm | Value7-1/2" |
| AttributeE | Value89 mm | Value3-1/2" |
| AttributeF | Value304 mm | Value11-31/32" |
| AttributeG | Value273 mm | Value10-3/4" |
| AttributeH | Value310 mm | Value12-3/16" |
| AttributeI | Value73 mm | Value2-7/8" |
| AttributeK | Value71 mm | Value2-13/16" |
| AttributeM | ValueM48 mm | ValueM48 |
| AttributeN | Value83 mm | Value3-1/4" |
Article number: 7993245
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value198.00 kg | Value436.52 lbs |
| AttributeNominal WLL | Value100000 kg | Value220000 lbs |
| AttributeT | Value577 mm | Value22-23/32" |
| AttributeA | Value400 mm | Value15-3/4" |
| AttributeB | Value83 mm | Value3-1/4" |
| AttributeC | Value577 mm | Value22-23/32" |
| AttributeD | Value190 mm | Value7-1/2" |
| AttributeE | Value89 mm | Value3-1/2" |
| AttributeF | Value304 mm | Value11-31/32" |
| AttributeG | Value273 mm | Value10-3/4" |
| AttributeH | Value310 mm | Value12-3/16" |
| AttributeI | Value73 mm | Value2-7/8" |
| AttributeK | Value71 mm | Value2-13/16" |
| AttributeM | ValueM48 mm | ValueM48 |
| AttributeN | Value83 mm | Value3-1/4" |
Article number: 7900917
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value360.00 kg | Value793.66 lbs |
| AttributeNominal WLL | Value120000 kg | Value264000 lbs |
| AttributeT | Value651 mm | Value25-5/8" |
| AttributeA | Value571 mm | Value22-15/32" |
| AttributeB | Value95 mm | Value3-3/4" |
| AttributeC | Value651 mm | Value25-5/8" |
| AttributeD | Value238 mm | Value9-3/8" |
| AttributeE | Value110 mm | Value4-11/32" |
| AttributeF | Value344 mm | Value13-9/16" |
| AttributeG | Value307 mm | Value12-3/32" |
| AttributeH | Value445 mm | Value17-1/2" |
| AttributeI | Value77 mm | Value3"-1/32" |
| AttributeK | Value75 mm | Value2-15/16" |
| AttributeM | ValueM48 mm | ValueM48 |
| AttributeN | Value95 mm | Value3-3/4" |
Article number: 7900383
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value678.00 kg | Value1494.73 lbs |
| AttributeNominal WLL | Value200000 kg | Value440000 lbs |
| AttributeT | Value880 mm | Value34-21/32" |
| AttributeA | Value650 mm | Value25-5/8" |
| AttributeB | Value120 mm | Value4-3/4" |
| AttributeC | Value880 mm | Value34-21/32" |
| AttributeD | Value290 mm | Value11-13/32" |
| AttributeE | Value100 mm | Value3-15/16" |
| AttributeF | Value460 mm | Value18-1/8" |
| AttributeG | Value426 mm | Value16-3/4" |
| AttributeH | Value500 mm | Value19-11/16" |
| AttributeI | Value73 mm | Value2-7/8" |
| AttributeK | Value71 mm | Value2-13/16" |
| AttributeM | ValueM48 mm | ValueM48 |
| AttributeN | Value130 mm | Value5-1/8" |
Article number: 7914979
| Attribute | Value |
|---|---|
| AttributeWLL | Value60.000 kg |
| AttributeWeight | Value195 kg |
| Attributesize A | Value400 mm |
| Attributesize B | Value75 mm |
| Attributesize C | Value577 mm |
| Attributesize D | Value190 mm |
| Attributesize E | Value89 mm |
| Attributesize F | Value304 mm |
| Attributesize G | Value273 mm |
| Attributesize H | Value310 mm |
| Attributesize I | Value73 mm |
| Attributesize K | Value45 mm |
| Attributesize M | ValueM30 |
| Attributesize N | Value83 mm |
| Attributepitch T | Value577 mm |
Article number: 7909644
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value845.00 kg | Value1862.91 lbs |
| AttributeNominal WLL | Value250000 kg | Value550000 lbs |
| AttributeT | Value894 mm | Value35-3/16" |
| AttributeA | Value730 mm | Value28-3/4" |
| AttributeB | Value126 mm | Value5" |
| AttributeD | Value300 mm | Value11-13/16" |
| AttributeE | Value138 mm | Value5-7/16" |
| AttributeF | Value452 mm | Value17-13/16" |
| AttributeG | Value380 mm | Value15" |
| AttributeH | Value580 mm | Value22-27/32" |
| AttributeI | Value74 mm | Value2-29/32" |
| AttributeK | Value72 mm | Value2-27/32" |
| AttributeM | ValueM48 mm | ValueM48 |
| AttributeN | Value120 mm | Value4-3/4" |
