ICE Balancer
- Balancer connection at top: Connection by shackles.
- Balancer connection at bottom: ICE-Connection links.
- Easy recognition of the limit tilt angle of 10° due to special shaping on the bottom of the balancer.
- Detailed information on the ICE-Balancer can be found in the operating manual.
- PLEASE NOTE THE FOLLOWING WHEN USING THE ICE-BALANCER SUSPENSION:
- The load must be symmetrical.
- The inclination angle β must not be greater than 45° (see diagrams 1 and 2).
- The inclination of the balancer must not be greater than 10° (see diagrams 3, 4 and 5).
- Detailed information on the ICE-Balancer can be found in the operating manual.
- Higher WLL at β = 15° or β = 30° see operating manual.
- With a 4-strand suspension, a maximum of only 3 strands can be assumed to be load-bearing. In unfavourable cases only 2 strands are used.
- Our TIP:
- When using a 2 x 2-strand suspension in the configuration shown, an even load distribution to all 4 strands and a 33 % higher WLL than a standard 4-strand suspension.
- DESIGN OF ICE-BALANCER HEAD IWK-2S CONSISTING OF:
- IA link with IKZA.
- VIP-Shackles.

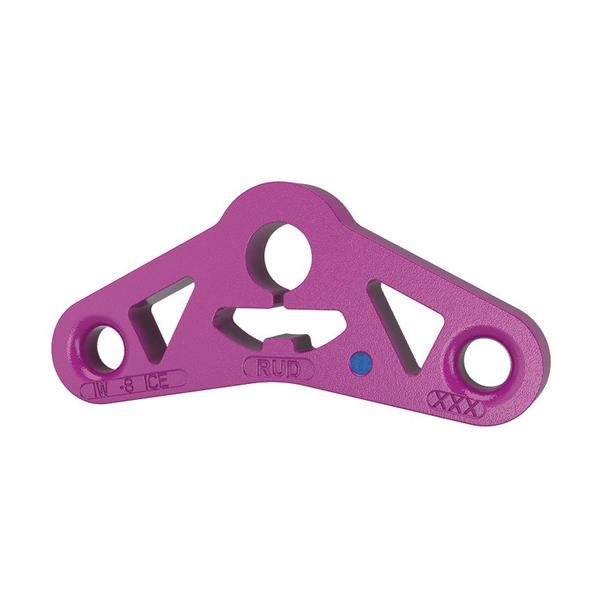

- ICE-Balancer.
- 2 ICE-Connecting links.
Article number: 7904367
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.49 kg | Value1.08 lbs |
| AttributeT | Value46 mm | Value1-13/16" |
| AttributeA | Value110 mm | Value4-11/32" |
| AttributeB | Value15 mm | Value19/32" |
| AttributeC | Value14 mm | Value9/16" |
| AttributeD | Value21 mm | Value13/16" |
Article number: 7904370
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value1.16 kg | Value2.56 lbs |
| AttributeT | Value59 mm | Value2-15/16" |
| AttributeA | Value150 mm | Value5-7/8" |
| AttributeB | Value20 mm | Value3/4" |
| AttributeC | Value18 mm | Value23/32" |
| AttributeD | Value26 mm | Value7/8" |
Article number: 7904372
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value2.20 kg | Value4.85 lbs |
| AttributeT | Value76 mm | Value3" |
| AttributeA | Value180 mm | Value7-1/16" |
| AttributeB | Value25 mm | Value63/64" |
| AttributeC | Value23 mm | Value29/32" |
| AttributeD | Value32 mm | Value1" |
Article number: 7904375
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value4.37 kg | Value9.63 lbs |
| AttributeT | Value91 mm | Value3-9/16" |
| AttributeA | Value240 mm | Value9-1/2" |
| AttributeB | Value30 mm | Value1-3/16" |
| AttributeC | Value28 mm | Value1-1/8" |
| AttributeD | Value38 mm | Value1-1/2" |
Article number: 7904255
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value8.80 kg | Value19.40 lbs |
| AttributeT | Value120 mm | Value4-3/4" |
| AttributeA | Value300 mm | Value11-13/16" |
| AttributeB | Value35 mm | Value1-3/8" |
| AttributeC | Value32 mm | Value1-1/4" |
| AttributeD | Value41 mm | Value1-5/8" |
