VRS-F STARPOINT, เกลียวเมตริก


เกลียวเมตริกพร้อมลิ่มล็อก
  • ขีดจำกัดการรับน้ำหนัก (WLL) กว้าง ตั้งแต่ 0.1 ตัน – 20 ตัน
  • มาพร้อมสลักเกลียว ICE-Bolt ชนิดพิเศษแบบถอดแยกไม่ได้ ผลิตจากเหล็กกล้าสูตรสิทธิบัตร (ขนาด M6–M24) ช่วยลดความเสี่ยงจากการใช้สกรูมาตรฐานทั่วไปที่ไม่เหมาะสม ปลอดภัยสำหรับการใช้งานในอุณหภูมิต่ำเป็นพิเศษ เนื้อเหล็กเหนียวขึ้น ช่วยเพิ่มความทนทานต่อการดัดงอและลดการสึกหรอ
  • ข้อมูลพิกัดน้ำหนัก (WLL) ที่ระบุ ตรงกับค่า WLL ต่ำสุด (ในกรณีที่ทิศทางการยกแย่ที่สุด) สำหรับทุกทิศทางการยก และสามารถรับน้ำหนักได้สูงขึ้นเมื่อปรับการติดตั้งหรือการใช้งานให้เหมาะสม
  • มีขนาดความยาวสลักให้เลือกหลากหลาย สำหรับใช้กับรูเจาะต๊าปเกลียวและรูเจาะทะลุ
  • มีขนาดเกลียวให้เลือกใช้งานอย่างครบครัน ครอบคลุมทุกความต้องการ

Article number: 7900906

STARPOINT VRS-F-0.1t-M6 with star profile wrench
AttributeValue
AttributeWLLValue100 kg
AttributeWeightValue0,07 kg
Attributesize BValue9 mm
Attributesize CValue7 mm
Attributesize DValue20 mm
Attributesize EValue23 mm
Attributesize GValue28 mm
Attributesize IValue13 mm
Attributesize KValue37 mm
Attributesize LValue9 mm
Attributesize MValueM 6
Attributesize NValue6 mm
Attributepitch TValue28 mm

Article number: 8500911

Vario-Starpoint VRS-F-M8 with star key
AttributeValue
AttributeWLLValue300 kg
AttributeWeightValue0,12 kg
Attributesize BValue11 mm
Attributesize CValue9 mm
Attributesize DValue25 mm
Attributesize EValue25 mm
Attributesize GValue30 mm
Attributesize IValue16,3 mm
Attributesize KValue47 mm
Attributesize LValue12 mm
Attributesize MValueM8
Attributesize NValue6 mm
Attributepitch TValue35 mm

Article number: 7104029

STARPOINT VRS-F-0.4t-M10 with star profile wrench
AttributeValue
AttributeWLLValue400 kg
AttributeWeightValue0,12 kg
Attributesize BValue11 mm
Attributesize CValue9 mm
Attributesize DValue25 mm
Attributesize EValue25 mm
Attributesize GValue30 mm
Attributesize IValue16,3 mm
Attributesize KValue47 mm
Attributesize LValue15 mm
Attributesize MValueM10
Attributesize NValue6 mm
Attributepitch TValue35 mm

Article number: 7101313

STARPOINT VRS-F-0.75t-M12 with star profile wrench
AttributeValue
AttributeWLLValue750 kg
AttributeWeightValue0,21 kg
Attributesize BValue13 mm
Attributesize CValue10 mm
Attributesize DValue30 mm
Attributesize EValue30 mm
Attributesize GValue34 mm
Attributesize IValue19,8 mm
Attributesize KValue56 mm
Attributesize LValue18 mm
Attributesize MValueM12
Attributesize NValue8 mm
Attributepitch TValue42 mm

Article number: 7999330

STARPOINT VRS-F-0.75t-M14 with star profile wrench
AttributeValue
AttributeWLLValue750 kg
AttributeWeightValue0,22 kg
Attributesize BValue13 mm
Attributesize CValue10 mm
Attributesize DValue30 mm
Attributesize EValue30 mm
Attributesize GValue34 mm
Attributesize IValue19,8 mm
Attributesize KValue56 mm
Attributesize LValue18 mm
Attributesize MValueM14
Attributesize NValue8 mm
Attributepitch TValue42 mm

Article number: 7101314

STARPOINT VRS-F-1.5t-M16 with star profile wrench
AttributeValue
AttributeWLLValue1.500 kg
AttributeWeightValue0,36 kg
Attributesize BValue15 mm
Attributesize CValue13 mm
Attributesize DValue35 mm
Attributesize EValue36 mm
Attributesize GValue40 mm
Attributesize IValue23,5 mm
Attributesize KValue65 mm
Attributesize LValue24 mm
Attributesize MValueM16
Attributesize NValue10 mm
Attributepitch TValue49 mm

Article number: 7908433

Vario-Starpoint VRS-F-M16, L=35 with star key
AttributeValue
AttributeWLLValue1.500 kg
AttributeWeightValue0,37 kg
Attributesize BValue15 mm
Attributesize CValue13 mm
Attributesize DValue35 mm
Attributesize EValue36 mm
Attributesize GValue40 mm
Attributesize IValue23.5 mm
Attributesize KValue65 mm
Attributesize LValue35 mm
Attributesize MValueM16
Attributesize NValue10 mm
Attributepitch TValue49 mm

Article number: 7903387


STARPOINT VRS-F-1.5t-M18 with star profile wrench
AttributeValue
AttributeWLLValue1.500 kg
AttributeWeightValue0,36 kg
Attributesize BValue15 mm
Attributesize CValue13 mm
Attributesize DValue35 mm
Attributesize EValue36 mm
Attributesize GValue40 mm
Attributesize IValue23.5 mm
Attributesize KValue65 mm
Attributesize LValue24 mm
Attributesize MValueM18
Attributesize NValue10 mm
Attributepitch TValue49 mm

Article number: 7101315

STARPOINT VRS-F-2.3t-M20 with star profile wrench
AttributeValue
AttributeWLLValue2.300 kg
AttributeWeightValue0,6 kg
Attributesize BValue17 mm
Attributesize CValue16 mm
Attributesize DValue40 mm
Attributesize EValue41 mm
Attributesize GValue50 mm
Attributesize IValue29.3 mm
Attributesize KValue76 mm
Attributesize LValue30 mm
Attributesize MValueM20
Attributesize NValue12 mm
Attributepitch TValue58 mm

Article number: 7992197

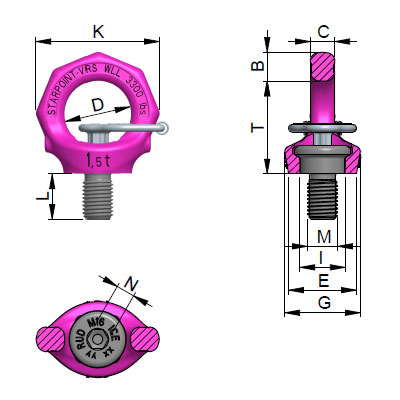

Vario-Starpoint VRS-F-M22 with star key
AttributeValue
AttributeWLLValue2.300 kg
AttributeWeightValue0,62 kg
Attributesize BValue17 mm
Attributesize CValue16 mm
Attributesize DValue40 mm
Attributesize EValue41 mm
Attributesize GValue50 mm
Attributesize IValue29.3 mm
Attributesize KValue76 mm
Attributesize LValue30 mm
Attributesize MValueM22
Attributesize NValue12 mm
Attributepitch TValue58 mm

Article number: 7101316

STARPOINT VRS-F-3.2t-M24 with star profile wrench with star key
AttributeValue
AttributeWLLValue3.200 kg
AttributeWeightValue1,06 kg
Attributesize BValue20 mm
Attributesize CValue19 mm
Attributesize DValue49 mm
Attributesize EValue51 mm
Attributesize GValue60 mm
Attributesize IValue35 mm
Attributesize KValue92 mm
Attributesize LValue36 mm
Attributesize MValueM24
Attributesize NValue14 mm
Attributepitch TValue70 mm

Article number: 7994138

STARPOINT VRS-F-3.2t-M27 with star profile wrench
AttributeValue
AttributeWLLValue3.200 kg
AttributeWeightValue1,08 kg
Attributesize BValue20 mm
Attributesize CValue19 mm
Attributesize DValue49 mm
Attributesize EValue51 mm
Attributesize GValue60 mm
Attributesize IValue35 mm
Attributesize KValue92 mm
Attributesize LValue36 mm
Attributesize MValueM27
Attributesize NValue14 mm
Attributepitch TValue70 mm

Article number: 7101317


STARPOINT VRS-F-4.5t-M30 with star profile wrench
AttributeValue
AttributeWLLValue4.500 kg
AttributeWeightValue2,08 kg
Attributesize BValue26 mm
Attributesize CValue24 mm
Attributesize DValue60 mm
Attributesize EValue66 mm
Attributesize GValue75 mm
Attributesize IValue44 mm
Attributesize KValue114 mm
Attributesize LValue45 mm
Attributesize MValueM30
Attributesize NValue17 mm
Attributepitch TValue87 mm

Article number: 7993439

STARPOINT VRS-F-4.5t-M33 with star profile wrench
AttributeValue
AttributeWLLValue4.500 kg
AttributeWeightValue2,13 kg
Attributesize BValue26 mm
Attributesize CValue24 mm
Attributesize DValue60 mm
Attributesize EValue66 mm
Attributesize GValue75 mm
Attributesize IValue44 mm
Attributesize KValue114 mm
Attributesize LValue45 mm
Attributesize MValueM33
Attributesize NValue17 mm
Attributepitch TValue87 mm

Article number: 7984201

STARPOINT VRS-F-7t-M36 with star profile wrench
AttributeValue
AttributeWLLValue7.000 kg
AttributeWeightValue3,49 kg
Attributesize BValue32 mm
Attributesize CValue29 mm
Attributesize DValue73 mm
Attributesize EValue76 mm
Attributesize GValue98 mm
Attributesize IValue53 mm
Attributesize KValue135 mm
Attributesize LValue54 mm
Attributesize MValueM36
Attributesize NValue22 mm
Attributepitch TValue104 mm

Article number: 7984202

STARPOINT VRS-F-9t-M42 with star profile wrench
AttributeValue
AttributeWLLValue9.000 kg
AttributeWeightValue5,39 kg
Attributesize BValue36 mm
Attributesize CValue34 mm
Attributesize DValue85 mm
Attributesize EValue86 mm
Attributesize GValue109 mm
Attributesize IValue62 mm
Attributesize KValue157 mm
Attributesize LValue63 mm
Attributesize MValueM42
Attributesize NValue24 mm
Attributepitch TValue122 mm

Article number: 7984203

STARPOINT VRS-F-12t-M48 with star profile wrench
AttributeValue
AttributeWLLValue12.000 kg
AttributeWeightValue8,17 kg
Attributesize BValue42 mm
Attributesize CValue38 mm
Attributesize DValue96 mm
Attributesize EValue101 mm
Attributesize GValue128 mm
Attributesize IValue70 mm
Attributesize KValue179 mm
Attributesize LValue72 mm
Attributesize MValueM48
Attributesize NValue27 mm
Attributepitch TValue138 mm

Article number: 7910836


STARPOINT VRS-F-16t-M56 with star profile wrench
AttributeValue
AttributeWLLValue16.000 kg
AttributeWeightValue12,97 kg
Attributesize BValue50 mm
Attributesize CValue44 mm
Attributesize DValue110 mm
Attributesize EValue112 mm
Attributesize GValue145 mm
Attributesize IValue82 mm
Attributesize KValue209 mm
Attributesize LValue84 mm
Attributesize MValueM56
Attributesize NValue32 mm
Attributepitch TValue161 mm

Article number: 7910837


STARPOINT VRS-F-20t-M64 with star profile wrench
AttributeValue
AttributeWLLValue16.000 kg
AttributeWeightValue12,97 kg
Attributesize BValue50 mm
Attributesize CValue44 mm
Attributesize DValue110 mm
Attributesize EValue112 mm
Attributesize GValue145 mm
Attributesize IValue82 mm
Attributesize KValue209 mm
Attributesize LValue84 mm
Attributesize MValueM56
Attributesize NValue32 mm
Attributepitch TValue161 mm
